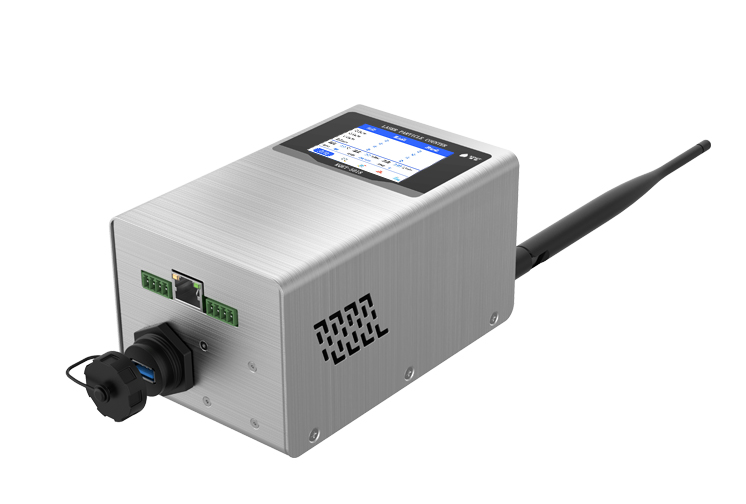

Product Features:

• High-precision sensor, accurate counting, excellent performance, in line with JJF1190-2008 Specification

• Compact size for convenient installation

• 2.4-inch intelligent touchscreen, rapid response, human-machine interaction, real-time display of monitoring data.

• Built-in vacuum source with a 3-year long service life, low vibration, low noise, and stable performance to ensure stable counting

• More professional industrial design, ensuring complete functional interfaces while maintaining aesthetics

• Can be started/stopped locally independently, suitable for both standalone and online use

• Can set its own instrument address directly on the screen for easy on-site replacement

• Calibration due alert to remind customers of metering/calibration

• Screen data alarms and Equipped with a flow sensor for real-time monitoring and automatic adjustment of flow rate, ensuring flow stability and counting accuracy

• 10-year service life imported semiconductor laser diode (calibration required annually)

• RS485 communication, supports Modbus RTU protocol, and customized communication protocols

• Intelligent IoT capabilities allow for remote start/stop, more accurate cleanliness level management, and enhanced monitoring quality

• Expandable analog input hardware interfaces, allowing for external connections to temperature and humidity sensors, airspeed sensors, pressure differential sensors, etc. (optional)

• USB data export functionality, effective local data storage for over a month to prevent data loss (optional)

• Real-time monitoring of particle quantities with particle sizes of 0.5μm and 5.0μm; expandable to monitor 6 particle size ranges: 0.3μm, 0.5μm, 1μm, 3μm, 5μm, and 10μm

• Built-in audio-visual alarm light, >85db

• Counter can be equipped with a wireless antenna, upgraded to wireless transmission mode (optional)

Technical Specifications
