The KQ-3010S HEPA filter counting leak tester is a precision testing instrument independently developed by our company for leak tester of high-efficiency filters in cleanrooms. This instrument adopts the photometer method for leak tester, and verifies whether the filter leaks by introducing aerosol particles and detecting the upstream and downstream concentrations.
The product is applied in leak test verification of filtration systems in pharmaceutical, electronics, biology, and research clean laboratories; leak verification of filters in clean benches, biosafety cabinets, glove boxes, and sterile isolation systems; and leak test verification for filter manufacturers. It complies with the requirements of specifications such as ISO14644-3:2019, JJF1800-2020 Calibration Specification for Aerosol Photometers, JJF1815-2020 Calibration Specification for Class II Biosafety Cabinets, YY0569-2011 Biosafety Cabinets, and GB/T 13554-2020 High-Efficiency Filters.

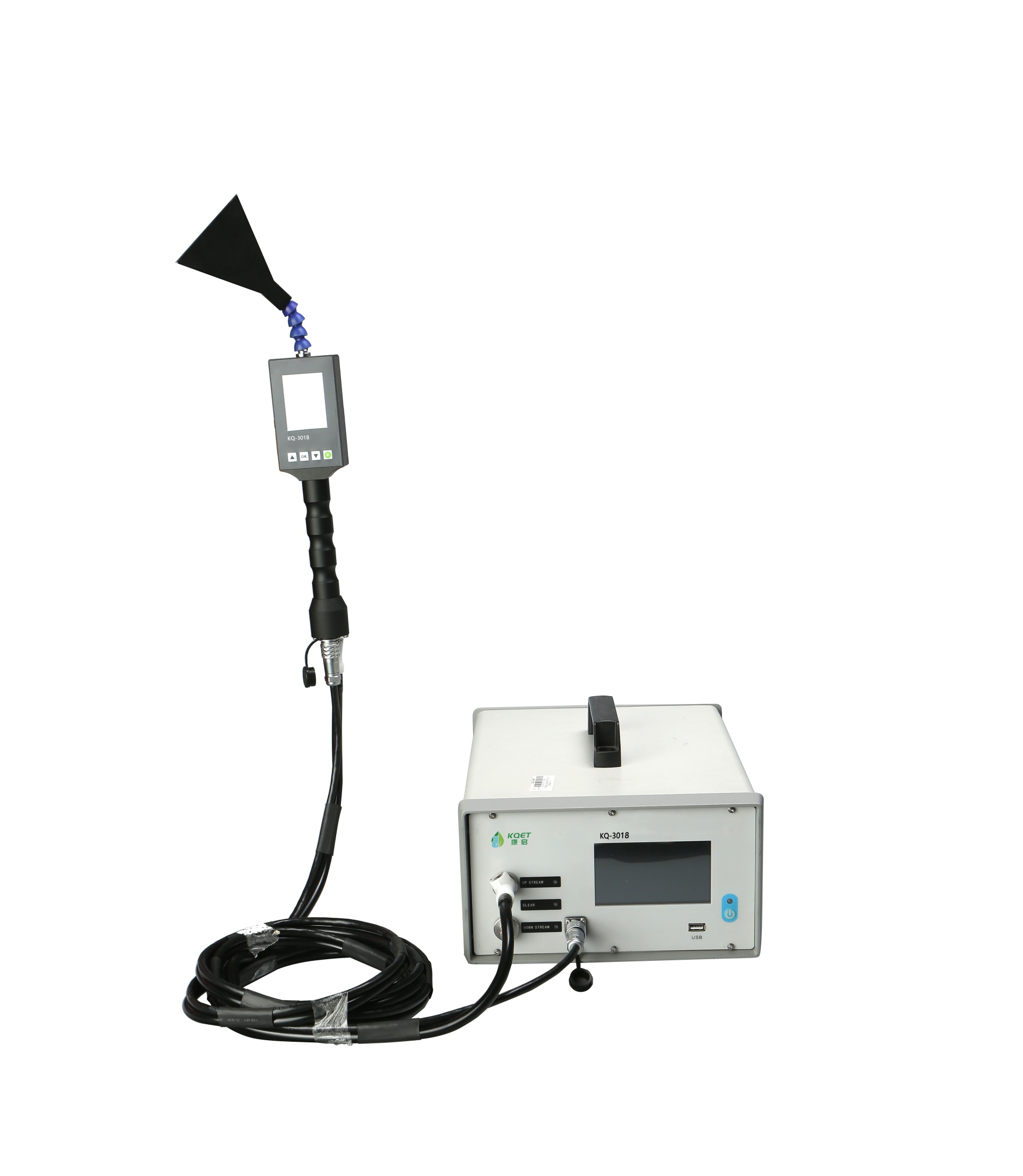

The KQ-3010S HEPA filter leak tester consists of two instruments: the photometer KQ-3018 and the aerosol generator KQ-6C.
|
Model |
KQ-3010S |
|
Sampling Flow Rate |
28.3L/min |
|
Concentration Range |
0.0001-300ug/L (mg/m³) |
|
Resolution |
0.0001ug/L |
|
Accuracy |
10% of reading (0.01%FS-100%FS) |
|
Repeatability |
<3% |
|
Auto Zero |
Zero reconstruction |
|
Self-Purification Time |
≤1min |
|
Aerosol Type |
PAO-4, etc. |
|
Storage |
Can store 1000 groups of data; historical data can be displayed and exported in various forms such as graphs, lists, and reports |
|
Printing |
External thermal printer |
|
Communication |
RS484 interface (Modbus-RTC protocol), USB interface |
|
Power Supply |
200-240VAC, 50Hz |
|
Dimensions (mm) |
Width 260 * Depth 370 * Height 160 |
|
Material |
Metal painted shell |
|
Weight |
10Kg |
|
Operating Environment |
Temperature: 10℃-35℃, Humidity: 20%-75%, Atmospheric Pressure: 86kPa-106kPa |
|

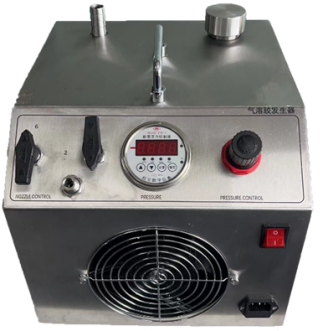

Model |
KQ-6C |
|
Applicable Aerosol Types |
PAO, DOP, DEHS, paraffin oil |
|
Applicable Flow Range |
50-2000CFM |
|
Generation Type |
Cold smoke generation |
|
Nozzle Type |
Laskin Nozzle |
|
Number of Nozzles |
2 or 6 |
|
Generation Concentration |
10μg@2000cfm, 100μg@200cfm |
|
Generated Particles |
0.1-10μm polydisperse |
|
Air Source |
Built-in compressor |
|
Enclosure |
304 stainless steel |
|
Dimensions (mm) |
Width 250 * Depth 280 * Height 300 |
|
Weight |
15Kg |
|
Power Supply |
220V |
|
Applicable Aerosol Types |
PAO, DOP, DEHS, paraffin oil |
