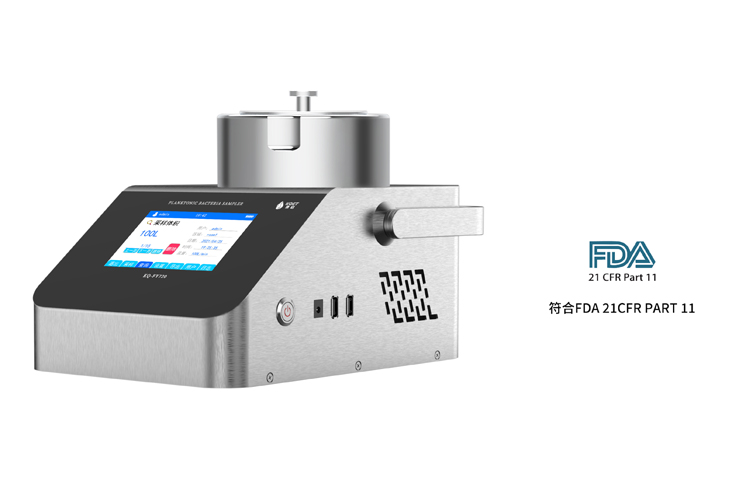

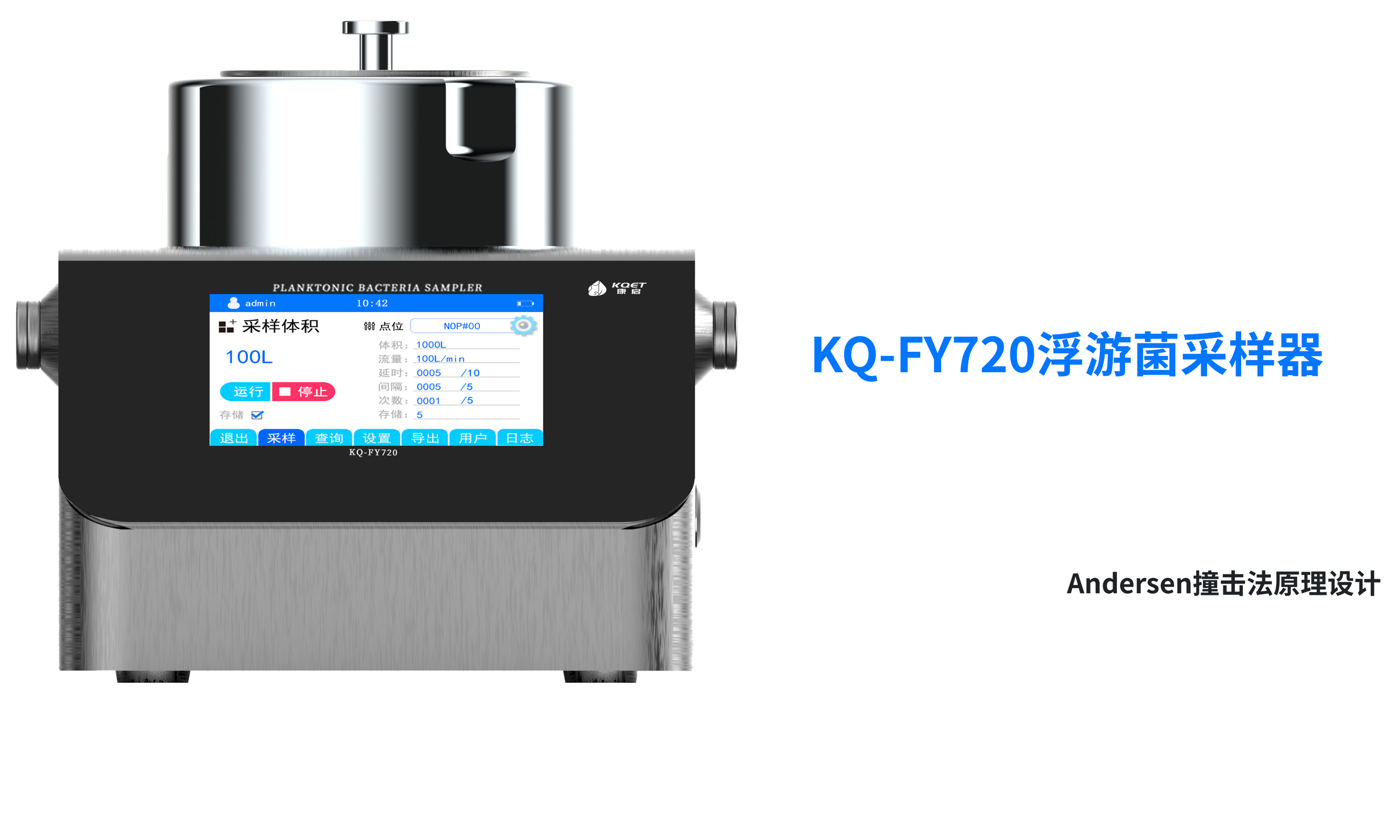

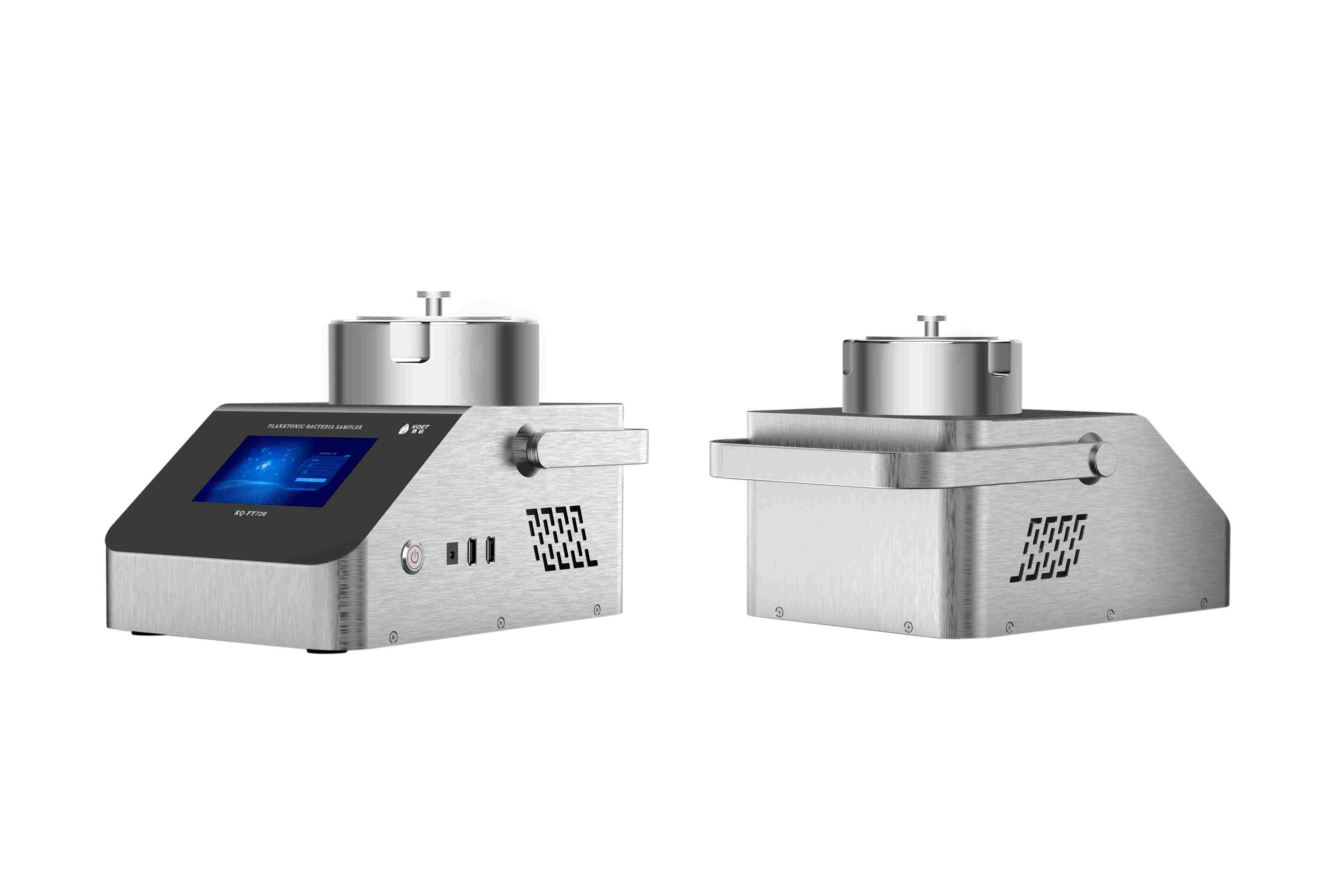

The KQ-FY720 bioaerosol sampler with an integrated desktop sampling head is a high-efficiency multi-hole suction sampler. The instrument has a flow rate of 100L/min and an impact velocity of 10.8m/s, which meets the requirements of the 5th level of Anderson impact grade, and finally ensures that all microbial particles larger than 1μm in the environment are collected.
The instrument adopts a 4.3-inch intelligent touchscreen, featuring user-friendly human-computer interaction and efficient and fast operation. It can be equipped with a Bluetooth printer, greatly improving the user experience.
The shell is designed with a professional industrial design scheme, and the entire body is made of 304 stainless steel, presenting a high-end and elegant appearance. This instrument is widely used in clean scenarios such as pharmaceutical research and development, biological laboratories, and medical operating rooms.
• 397-mesh φ0.7mm micro-hole stainless steel sampling head reduces bacterial overlap, minimizes microbial counting errors, and reduces secondary pollution.
• 4.3-inch high-definition touchscreen with higher resolution and faster response.
• User-friendly human-computer interaction with simple and direct operation, reducing user learning costs and improving user experience.
• High sampling flow rate of 100L/min shortens sampling time and improves sampling efficiency.
• Impact velocity of 10.8m/s, in line with the 5th stage of the Anderson impact principle, ensuring that all microbial particles ＞1μm are captured.
• 20,000 groups of data storage, supporting one-click PDF export via USB flash drive for data download anytime and anywhere; Bluetooth printing is optional.
• Supports preset functions for 400 room points, enabling one-click selection and quick sampling.
• Supports 20-user management, password complexity management, and multi-level authority management.
• Supports audit trail and log management, which can be queried, traced, and controlled, complying with FDA 21CFR PART11 specifications.
• Supports calibration reminder function to prompt users for timely metering and ensure normal use of the instrument.
• More professional industrial design with a compact size for easy carrying.
|
Model |
KQ-FY720 |
|
Sampling Flow Rate |
100L/min±5% |
|
Sampling Volume |
1-50000L (configurable) |
|
Impact Velocity |
10.8m/s |
|
Sampling Head |
397-mesh φ0.7 micro-hole, reducing bacterial overlap and minimizing microbial counting errors |
|
Petri Dish |
φ90*15mm standard universal petri dish |
|
Screen Display |
4.3-inch IPS touch color screen |
|
Operating Voltage |
DC16.8V/2A |
|
Battery Life |
≥6 hours |
|
Power |
Input AC100-240V/50HZ, Output DC16.8V/3A |
|
Charging Time |
1.5 hours |
|
Metering Reminder |
Calibration reminder function to prompt users for timely metering |
|
Preset Points |
Supports preset functions for 400 room points, enabling one-click selection and quick sampling |
|
Data Storage |
20,000 entries |
|
Data Export |
USB flash drive export + USB communication export, export format PDF |
|
Data Security |
20-user management, password complexity management, multi-level authority management |
|
Printing Requirement |
Optional Bluetooth printer for printing |
|
Calibration Reminder |
Calibration reminder function to prompt users for timely metering and ensure normal use of the instrument |
|
Audit Trail |
Queryable, traceable, controllable, complying with FDA 21CFR PART11 specifications |
|
Calibration Specification |
ISO14698-1/2, GB/T16293-2010 |
|
Material |
304 stainless steel |
|
Dimensions (mm) |
Width 160 * Depth 230 * Height 168 |
|
Weight (including battery) |
4.6Kg |
|
Operating Environment |
Temperature 0~40°C, Humidity 10%~90% (no condensation) |
|
Storage Environment |
Temperature -10~50°C, Humidity 0~90% (no condensation) |
