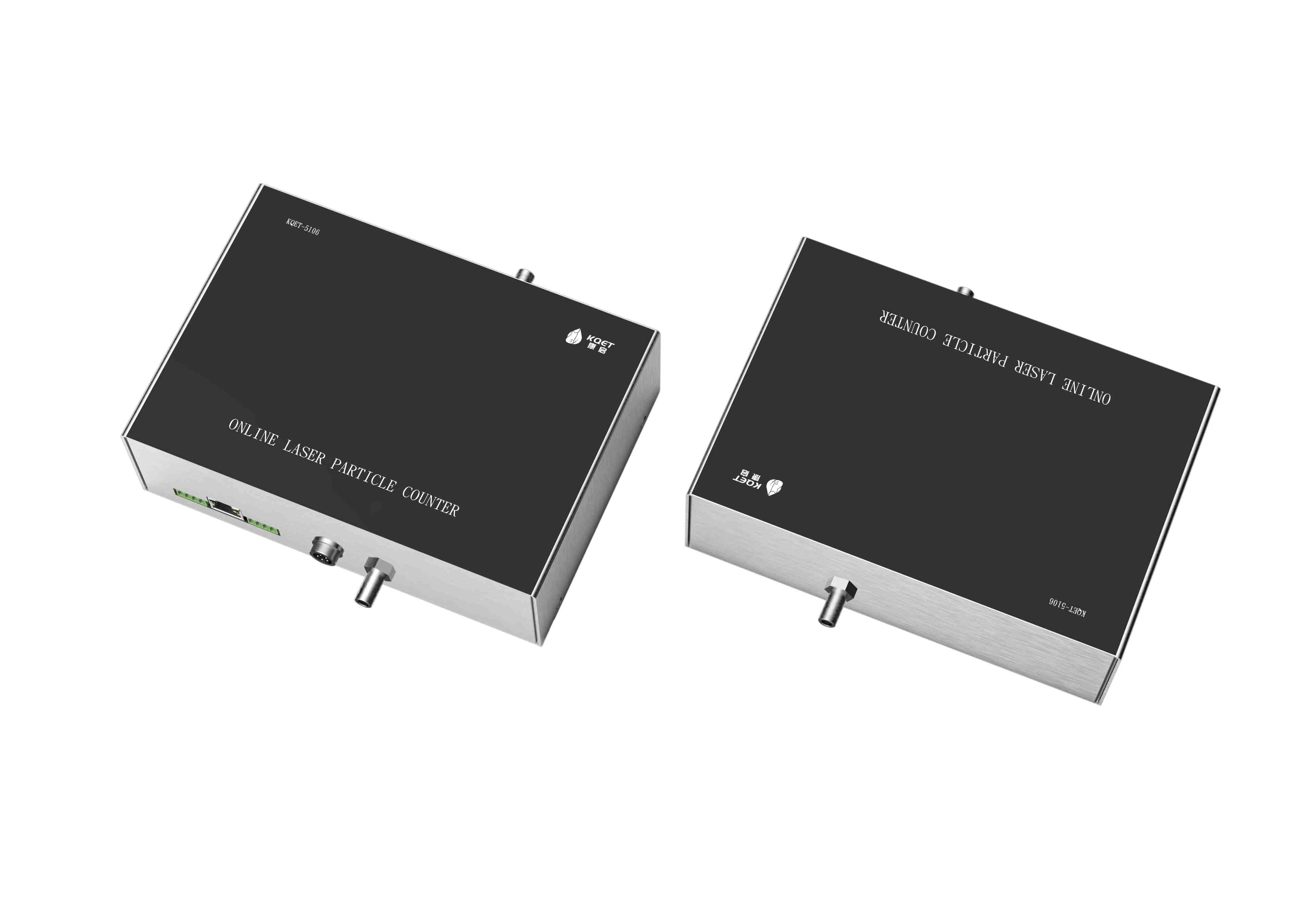

The KQET-5106 series is a remote laser airborne particle counter with high flow rate of 28.3L, is a testing instrument applied in the fields of cleanliness monitoring and micro-particle counting detection in clean environments. Based on the light scattering principle, the counter realizes the detection of airborne particle size distribution and the counting of particle quantity through photoelectric sensing technology
Compared with low flow rate counters, this instrument has a higher sampling flow rate of 28.3L/min, enabling more accurate detection, and has become an essential instrument for pharmaceutical factory GMP certification.
Similarly, this instrument can also be applied to other clean scenarios such as electronics, hospital operating rooms, aerospace, precision machining, and food industries. It features high measurement accuracy, small size, light weight, and easy installation.
• High-precision sensor, accurate counting, excellent performance, in line with JJF1190-2008 Specification
• Compact size for convenient installation
• High sampling flow rate of 28.3L/min enhances sampling precision and efficiency
• More professional industrial design, ensuring complete functional interfaces while maintaining aesthetics
• 10-year service life imported semiconductor laser diode (calibration required annually)
• RS485 communication, supports Modbus RTU protocol, and customized communication protocols
• Intelligent IoT capabilities allow for remote start/stop, more accurate cleanliness level management, and enhanced monitoring quality
• Expandable analog input hardware interfaces, allowing for external connections to temperature and humidity sensors, airspeed sensors, pressure differential sensors, etc. (optional)
• Real-time monitoring of particle quantities with particle sizes of 0.5μm and 5.0μm; expandable to monitor 6 particle size ranges: 0.3μm, 0.5μm, 1μm, 3μm, 5μm, and 10μm
• Counter can be equipped with a wireless antenna, upgraded to wireless transmission mode (optional)
|
Model |
KQET-5106 |
KQET-5106M |
|
Particle Size Range |
|
0.3μm~10.0μm |
|
Particle Size Channels |
0.5μm, 5.0μm |
0.3μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10.0μm |
|
Particle Size Distribution Error |
/ |
≤±20% |
|
Concentration Indication Error |
0.5μm≤±20%FS |
|
|
Maximum Sampling Concentration |
35000 particles/L |
|
|
Repeatability Error |
±5%FS |
|
|
Self-Purification Time |
≤5min |
|
|
Sampling Flow Rate |
28.3L±5% |
|
|
Laser Source |
10-year service life imported semiconductor laser diode |
|
|
Vacuum Source |
External vacuum source, 3-year service life |
|
|
Power Supply |
DC24V/1A |
|
|
Communication Mode |
RS485 @ Modbus RTU / Ethernet @ Modbus TCP / Wireless Communication @ LoRa |
|
|
Calibration Specification |
JJF1190-2008/ISO 21501-4 |
|
|
Enclosure |
304 stainless steel |
|
|
Dimensions (mm) |
Width 187 * Depth 145 * Height 78 |
|
|
Operating Environment |
Temperature 0~40°C, Humidity 10%~90% (no condensation) |
|
|
Storage Environment |
Temperature -10~50°C, Humidity 0~90% (no condensation) |
|
