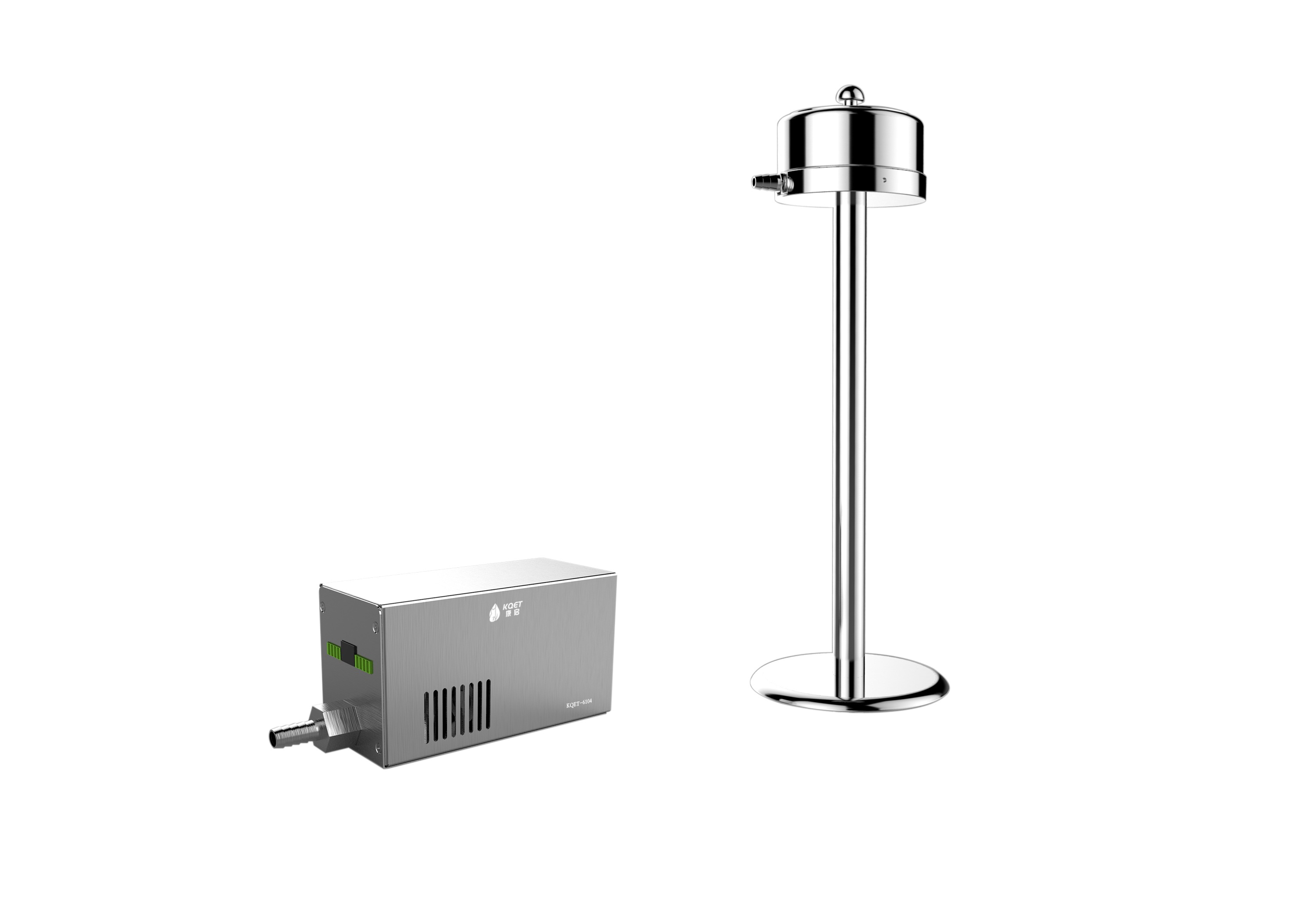

The KQET-6104 central integrated pump remote bioaerosol sampler is a multi-hole suction sampler applied in online monitoring systems. The sampler consists of two parts: a sampling head and a controller.
The entire sampling head is made of 304 stainless steel with a mirror-finished surface, presenting a high-end and elegant appearance. The sampling head adopts a micro-hole design to reduce bacterial overlap and minimize microbial counting errors. The sampling head bracket is thick and stable, preventing the petri dish from shaking during sampling and thus avoiding counting errors.
The controller body is also made of 304 stainless steel, meeting the requirements of GMP specifications. It is equipped with an internal precision digital flow sensor that can monitor the sampling flow in real time and control the total sampling volume, ensuring the accuracy of sampling results.
• Micro-hole sampling head reduces bacterial overlap and minimizes microbial counting errors.
• Mirror-finished stainless steel sampling head not only meets GMP specification requirements but also appears high-end and elegant.
• High sampling flow rate of 28.3L/min shortens sampling time and improves sampling efficiency.
• Real-time flow monitoring enhances sampling precision and ensures the accuracy of sampling results.
• Impact velocity of 10.8m/s, in line with the 5th stage of the Anderson impact principle, ensuring that all microbial particles larger than 1μm can be captured.
• Professional industrial design with a compact size for easy installation.
|
Model |
KQET-6104 |
|
Sampling Flow Rate |
28.3L/min±5% |
|
Sampling Volume |
1-6000L (configurable) |
|
Impact Velocity |
10.8m/s |
|
Sampling Head |
Micro-hole type, reducing bacterial overlap and minimizing microbial counting errors |
|
Air Source |
External vacuum source |
|
Display |
External display screen for displaying data or debugging parameters (optional) |
|
Power Supply |
DC24V/2A |
|
Executive Standard |
ISO14698-1/2, GB/T16293-2010 |
|
Petri Dish |
φ90*15mm standard universal petri dish |
|
Communication Mode |
RS485 @ Modbus RTU Protocol |
|
Material |
Sampling head: 304 stainless steel (mirror finish); Controller: 304 stainless steel (brushed surface) |
|
Dimensions (mm) |
Sampling head: φ104*472; Controller: Width 72 * Depth 168 * Height 91 |
|
Operating Environment |
Temperature 10~40°C, Humidity 10%~90% (no condensation) |
|
Storage Environment |
Temperature -10~50°C, Humidity 90% (no condensation) |
