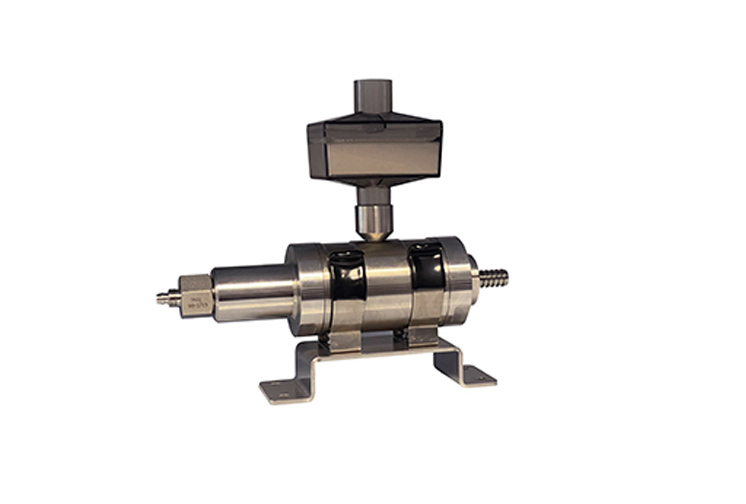

KQ-P910S High-Pressure Diffuser (Pressure Relief Valve)

This instrument features an ultra-long service life, stable performance, compact and lightweight design, portability, wide applicability, safety, and reliability. It meets the testing requirements for cleanrooms used in precision processing and precision testing across industries such as pharmaceuticals, electronics and semiconductors, food hygiene, cosmetics, and aerospace.

Note: According to the new GMP standards, the cleanliness and microbial levels of compressed air must be measured. If a counter is used to directly sample micro-high-pressure or high-pressure gases, the high pressure may impact and damage the counter, and accurate measurement cannot be guaranteed.

The diffuser complies with the reference standards GBT13277-91 & ISO8573[1].1-2001.

Consultation hotline：181-5178-9348

Consult immediately

PRODUCT SPECIFICATIONS

Product Features:

High-pressure gas diffuser adapted pressure range:20-120psi
Particle size range in terms of cleanliness: >0.3umm
Flow rate:28.3L/min;50L/min; 100L/min
Airborne bacteria sampler microbial detection flow: 28 3L/min, 50L/min, 100L/min
During the sampling process, no input gas was wasted, and 100% of the input gas was applied to the process sampling
The core components are all made of stainless steel

Technical Specifications:

Model	KQ-P910S
Pressure	20-120psi
Flow Rate	2.83L/min, 28.3L/min, 50L/min, 100L/min
Temperature Range	4-35℃, 0-85% relative humidity (non-condensing)
Material	316L stainless steel structure, silicone gasket
Sample Gas	Dry, inert, non-toxic, non-flammable gas
Inlet Connector	φ8MM PU air pipe
Outlet Connector	φ12mm or φ19mm pagoda connector
Exhaust Filter	＞99.999%@0.2μm
ISO Grade	Less than 5% of ISO Class 5
Exhaust Pipe Length	＜1.5m
Dimensions (mm)	Width 60 * Depth 228 * Height 82
Weight	1.9Kg
Base	Desktop placement or wall-mounted
Front Regulating Valve	Optional
Rear Flow Meter	Optional
Accessories	Packaging box, certificate of conformity, specification sheet
Adaptable Instruments	Covers most domestic and foreign counters and airborne bacteria samplers
