The KQ-W210 is applicable to airflow pattern photography and video recording in clean workshops and local clean environments.
According to ISO14644-3 and the new GMP requirements for clean workshop acceptance, airflow direction evaluation is required. The KQ-W210 pure water aerosol generator can generate high-concentration water vapor (particle size range: 1-10μm, concentration over 80%) with high visibility and absolute no pollution.
After the water vapor is emitted in the cleanroom, there is no measurable residual substance. The KQ-W210 is widely used in semiconductor and pharmaceutical clean workshops.
• Optimal water level range, supporting continuous smoke generation for more than 20 minutes.
• Can be connected to a discharge tube to generate curtain-shaped aerosol (extendable up to 2 meters).
• Low noise, ≤50dB.
• Ultra-pure spray without pollution.
• Used for testing in Grade A/B/C clean workshops.
• Cleanroom laminar flow testing.
• Airflow balance testing.
• Exhaust system testing of chemical processing equipment.
• Verification of personnel safety exhaust systems.
• Duct leak testing.
• Pressure balance inside and outside the room.
|
Model |
The KQ-W210 |
|
Power Supply |
AC 220V 50Hz |
|
Water Filling Capacity |
2500ml (maximum 3000ml) |
|
Dimensions (mm) |
Width 202 * Depth 302 * Height 283 |
|
Weight |
9Kg |
|
Rated Power |
210W |
|
Aerosol Output |
≥5500ml/h |
|
Atomized Particle Size |
1-10μm |
|
Optimal Atomization Water Level |
28mm |
|
Aerosol Plume Height |
120~150mm |
|
Optimal Water Filling Volume |
1200ml |
|
Applicable Water Conductivity |
0.15~1.00 ms/cm |
|
Input Voltage of Smoke Generation Component |
DC 45V |
|

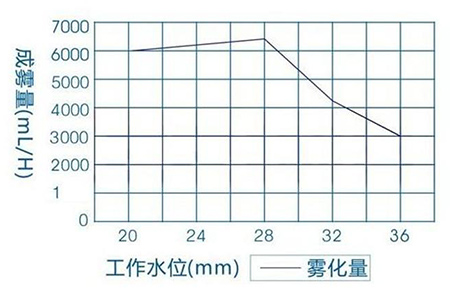

Relationship Between Aerosol Output and Working Water Level |
[Refer to the graph: Smoke Generation Capacity (mL/H) vs. Working Water Level (mm)] |
