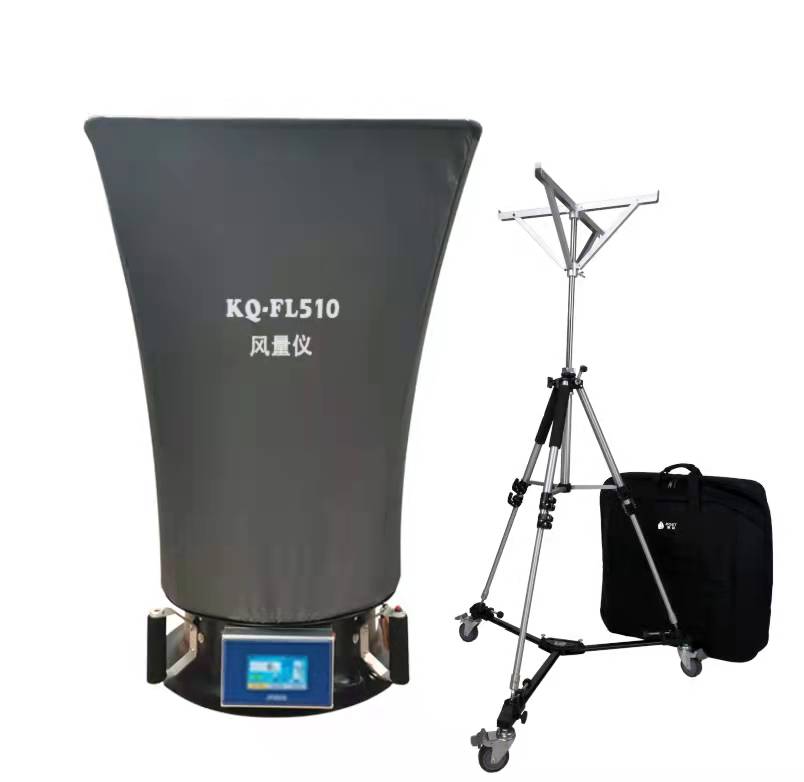

The KQ-FL510 touchscreen balometer capture hood adopts the pitot tube principle to automatically detect air pressure at multiple points and multiple times, generating average airflow (m³/h). It is characterized by accuracy, speed, and simplicity, and is widely used in HVAC and purification technology industries for direct measurement of airflow at air outlets and in pipelines.
The touchscreen balometer capture hood is divided into air outlet type and pipeline type. It can display measurements individually or realize centralized computer display and management of airflow at multiple room air outlets or in multiple pipelines.
Each KQ-FL510 touchscreen balometer capture hood is calibrated at multiple airflow points through a strict 0.5-level standard wind tunnel calibration device before leaving the factory, providing reliable quality assurance for u
• Adopts the pitot tube principle to automatically detect air pressure at multiple points and multiple times, generating average airflow, which is on par with international standards.
• 5000 groups of data storage for viewing, printing, and recording anytime and anywhere.
• Low self-resistance and high measurement accuracy.
• Data is not lost after power failure (within 4 hours).
• External printer and USB flash drive data export.
• The mobile bracket can be raised up to 2.8m, and the hood is 0.9m, with an overall height of up to 3.7m, providing convenience for testing (optional).
|
Model |
KQ-FL510 |
KQ-FL501 |
|
Sampling Airflow Range |
150-3500m³/h |
80-2500m³/h |
|
Sampling Airflow Accuracy |
±5% of reading |
|
|
Sampling Airflow Resolution |
1m³/h |
|
|
Temperature Measurement Range |
0-60℃ |
|
|
Temperature Measurement Accuracy |
±0.5℃ |
|
|
Temperature Measurement Resolution |
0.1℃ |
|
|
Humidity Measurement Range |
0-100%RH |
|
|
Humidity Measurement Resolution |
0.1%RH |
|
|
DC Power Supply |
Two Panasonic 3.7V 2200mAh lithium batteries |
|
|
AC Power Supply |
AC220V 50Hz converted to DC9V |
|
|
Battery Life |
≥12 hours |
|
|
Self-Resistance |
≤5Pa |
|
|
Air Velocity |
Air velocity can be directly read through airflow |
|
|
Data Memory Capacity |
1∽5000 groups of measurement data (queryable) |
|
|
Charging Time |
2 hours |
|
|
Airflow Hood Dimensions (mm) |
570570/830 |
|
|
Test Direction Setting |
Direction A, Direction B |
|
|
Screen Display |
4.3-inch color touchscreen with print interface |
|
|
Printing Method |
External wireless thermal printer |
|
|
Startup Method |
Screen click, handle button, wireless remote control |
|
|
Data Communication Interface |
USB |
|
|
Environment |
Operating Environment: 0∽40℃, Relative Humidity: 10∽90% Storage Environment: -30℃∽45℃ Relative Humidity ：0∽90% Corrosive gas measurement is strictly prohibited |
|
|
Weight (including battery and 570 sampling hood) |
4Kg |
|
