Flexible & Intuitive Control

Easy operation, smart point control, auto retest, up to 120m tube, optional detectors

High Efficiency & Performance

Fast self-cleaning, multiple flow rates, 24/7 operation, 10-year life

Full Compliance

 ISO14644 & GMP compliant, audit trail, remote web access

Strong Compatibility

Works with standard cleanroom chemicals and multi-point high-frequency monitoring

Broad Applications

Cleanroom monitoring, fault diagnosis, resource optimization, digital upgrades

Product Advantages

1、Simple operation, accurate positioning, and controllable sequence

2、Short self-purification time

3、Flexible layout, with sampling pipes supporting a length of up to 120m

4、Intelligent control of sampling points, intelligent re-testing, and flexible scheduling

5、Rational use of the factory's existing resources to improve the informationization process

6、Audit trail meets the requirements of the latest data integrity regulations

7、Flexible selection of measurement equipment (optional)

Product performance

1、Diverse and efficient data collection

2、Clear instruction set and simple control

3、Accessible via a web browser

4、Compatible with conventional cleanroom cleaning chemicals

5、Supports flow rates of 100L/min, 50L/min, or 28、3L/min-100L/min; it only takes 10 minutes to collect a 1m³ sample

6、7*24 hours of uninterrupted operation for 10 years

7、Complies with ISO14644-1:2015 standard

Application Fields

1、Cleanroom monitoring

2、ISO14644-1:2015, EU GMP, China GMP, FS209E cleanroom classification

3、Statistical process control

4、Particle over-limit fault diagnosis

5、Compatible with multi-point sampling

6、Cluster high-frequency monitoring

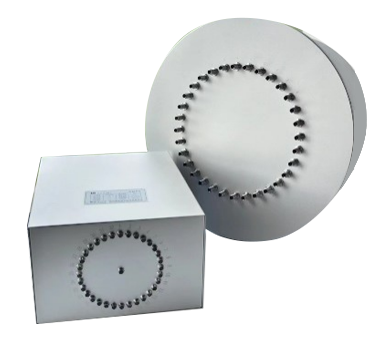

Model：KQET-04

Particle Size Range：0.1μm-10μm

Flow Range：28.3~100L/min

Self-Purification Time：≤3s (cross-contamination rate 0%, air exchange time 2.5ms)

Maximum Concentration：>950,000 particles/ft³

Sampling Pipe：ID=5/8”, maximum length 180m; ID=3/8”, maximum length 120m; ID=1/4”, maximum length 60m

Number of Ports：Supports up to 32 sampling ports, with programmable sequential and point measurement (frequency/sequence configurable)

Counting Efficiency：50%±20@0.1μm (minimum particle size)

Remote Operation：Real-time communication via Ethernet, and Wi-Fi communication (optional)

Cabinet Cleaning Material：Resistant to bleach, ethanol/isopropanol, hydrogen peroxide/quaternary ammonium salt solvents

Operating Environment：Temperature: 0-32℃ (32-89.6℉), Humidity: 5-95%RH (no condensation)

Dimensions (mm)：φ450×270

Weight：19kg

Power Supply：100-240V, 50-60Hz, 1A
