Real-time wide-range particle size monitoring

Particle size: 0.5, 1, 5, 10, 25, 50 μm

Intelligent touch control for easy on-site maintenance

4.3-inch intelligent touch screen, support direct address setting, both local and online operation modes, making replacement and debugging more convenient

Stable, durable and long-service-life design

10-year long-life laser source & 3-year long-life built-in vacuum source with low vibration and low noise, enabling 24/7 continuous operation

Multiple alarms and safety protection

1CFM real-time flow monitoring and self-regulation, built-in audible and visual alarm light with >85db, and automatic over-concentration reminder

Multi-protocol communication compatibility and strong expandability

Supports RS485/TCP/WIFI/4G communication, customizable protocols, local data storage, and external connection with various sensors

1、High-precision sensor, accurate counting, excellent performance

2、Integrated design, easy installation

3、4.3-inch intelligent touchscreen, rapid response, human-machine interaction, real-time display of monitoring data.

4、Built-in vacuum source with a 3-year long service life, low vibration, low noise, and stable performance to ensure stable counting

5、Can be started/stopped locally independently, suitable for both standalone and online use

6、Can set its own instrument address directly on the screen for easy on-site replacement

7、Calibration due alert to remind customers of metering/calibration

8、Screen data alarms and Equipped with a flow sensor for real-time monitoring and automatic adjustment of flow rate, ensuring flow stability and counting accuracy

9、10-year service life imported semiconductor laser diode (calibration required annually)

10、RS485 communication, supports Modbus RTU protocol, and customized communication protocols

11、Intelligent IoT capabilities allow for remote start/stop

12、Local data storage for over one month to prevent data interruption, with data export via backend software (optional).

13、Real-time monitoring of particle quantities with particle sizes of 0.5μm, 1.0μm, 5.0μm, 10μm, 25μm, and 50μm

14、Built-in audio-visual alarm light, >85db

15、Counter can be equipped with a wireless antenna, upgraded to wireless transmission mode (optional)

16、Expandable analog input hardware interfaces, allowing for external connections to temperature and humidity sensors, airspeed sensors, pressure differential sensors, etc. (optional)

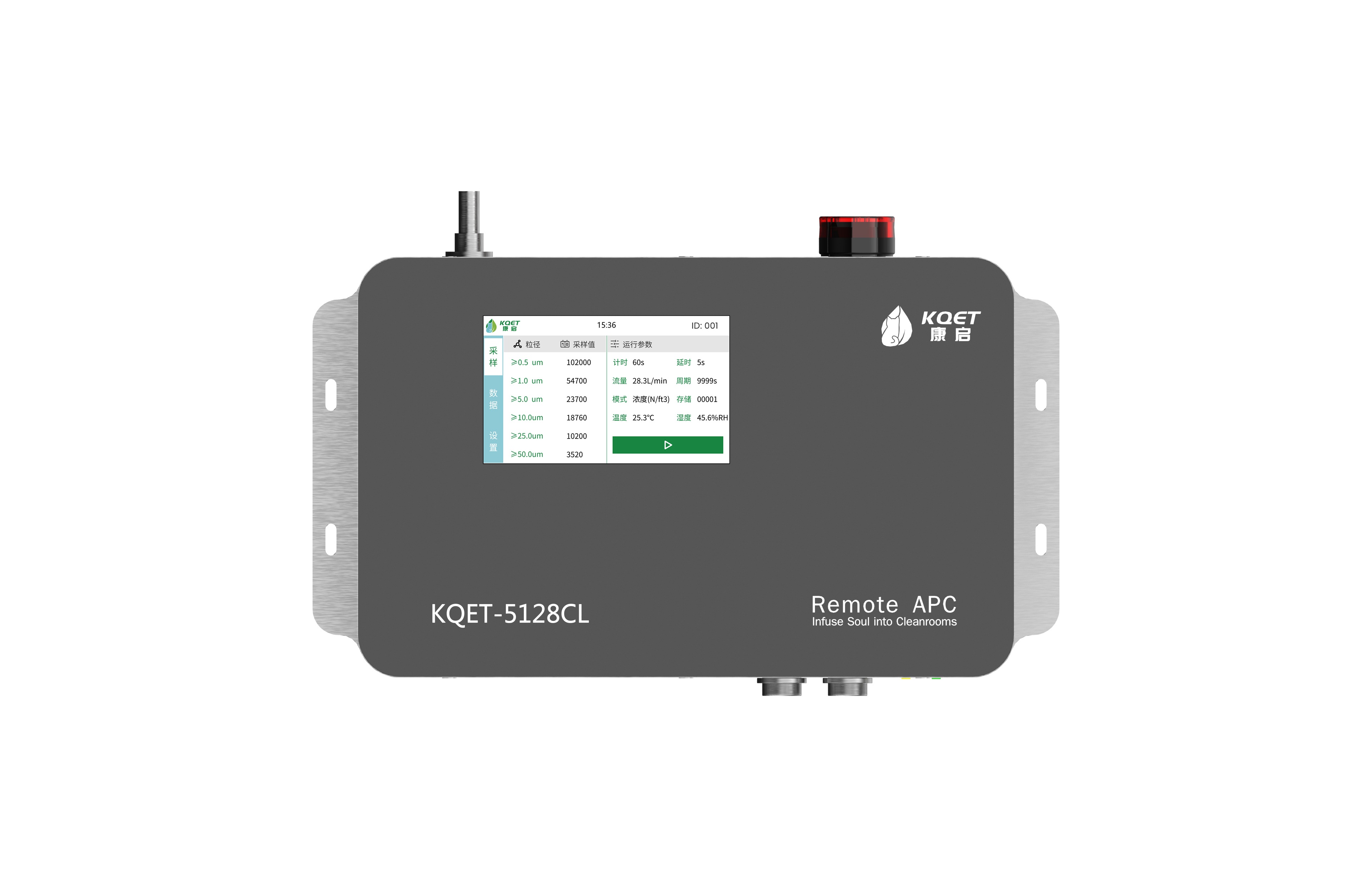

Model：KQET-5128CL

Particle Size Range：0.5μm~50μm

Particle Size Channels：0.5μm, 1.0μm, 5.0μm, 10μm, 25μm, 50μm(Customizable)

Maximum Sampling Concentration：35000 particles/L, concentration over-limit protection and prompt for instrument self-purification

Repeatability Error：±5%FS

Self-Purification Time：≤5min

Sampling Flow Rate：28.3L/min±5%, real-time monitoring, over-limit alarm

Sampling Cycle：1-9999s (configurable)

Continuous Operation：Supports 24-hour uninterrupted stable operation

Laser Source：10-year service life imported semiconductor laser diode

Vacuum Source：Built-in vacuum source, 3-year service life

Display：4.3-inch touchscreen

Power Supply：DC24V/4A

Communication Mode：RS485 @ Modbus RTU / Ethernet @ Modbus TCP / Wireless Communication @ LoRa

Calibration Specification：JJF1190-2008/ISO 21501-4

Enclosure：304 stainless steel

Dimensions (mm)：Width 250 * Depth 160 * Height 150

Weight ：2.6Kg

Operating Environment：Temperature 0~40°C, Humidity 10%~90% (no condensation)

Storage Environment：Temperature -10~50°C, Humidity 0~90% (no condensation)
