1、Optimal water level – Continuous smoke for 20+ minutes

2、Smoke tube compatible– Creates curtain-shaped smoke

3、Low noise – ≤50 dB

4、Ultra-pure, pollution-free emission

5、For Class A/B/C cleanroom testing

Product Features:

1、Optimal water level range, supporting continuous smoke generation for more than 20 minutes

2、Can be connected to a discharge tube to generate curtain-shaped aerosol (extendable up to 2 meters)

3、Low noise, ≤50dB

4、Ultra-pure spray without pollution

5、Used for testing in Grade A/B/C clean workshops

Application Range

1、Cleanroom laminar flow testing

2、Airflow balance testing

3、Exhaust system testing of chemical processing equipment

4、Verification of personnel safety exhaust systems

5、Duct leak testing

6、Pressure balance inside and outside the room

Model：KQ-W210

Power Supply：AC 220V 50Hz

Water Filling Capacity：2500ml (maximum 3000ml)

Dimensions (mm)：Width 202 * Depth 302 * Height 283

Weight：9Kg

Rated Power：210W

Aerosol Output：≥5500ml/h

Atomized Particle Size：1-10μm

Optimal Atomization Water Level：28mm

Aerosol Plume Height：120~150mm

Optimal Water Filling Volume：1200ml

Applicable Water Conductivity：0.15~1.00 ms/cm

Input Voltage of Smoke Generation Component：DC 45V

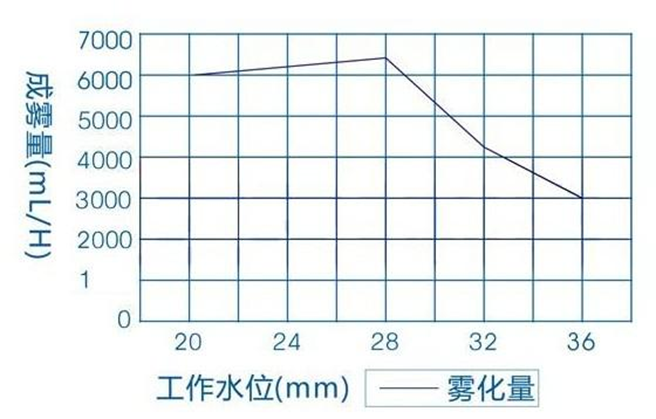

Relationship Between Aerosol Output and Working Water Level：
